Product Description:

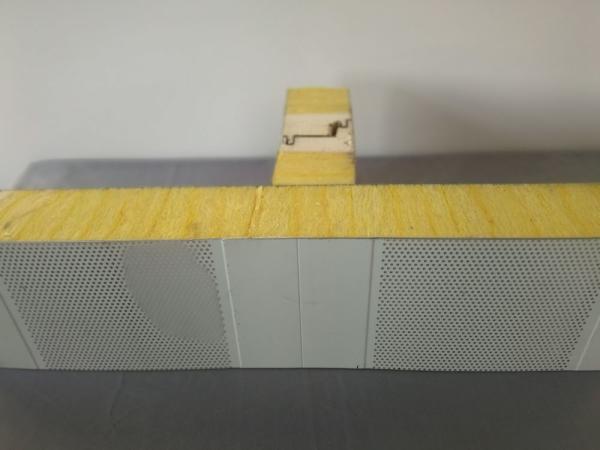

Acoustic Sandwich Panel is a kind of sound absorbing panel with
superior acoustic performance, which is made of Rockwool and
Glasswool. It is easy to install and provides excellent
soundproofing. With it, people can easily enjoy a quiet and
comfortable environment. It also has excellent after-sale service,
including online technical support, onsite installation, and other
services for customers. Acoustic Sandwich Panel is the best choice
for soundproofing and acoustic barrier. It is also widely used in
public places, such as schools, conference rooms, and entertainment
venues.
Features:
1.Thermal Insulation: The low coefficient of heat conductivity and
the excellent node design guarantee the sealing performance and the
thermal insulation effect.
2.Sound Insulation: The sound absorption effect is good. The sound
reduction factor is no less than 30dB. It can effectively reduce
the interference of outside noise.
3.Solid: The panel has high strength, unique double-support plug
interface design and strong capacity in wind pressure resistance.
It has strong strength to resist pressure and bearing, which can
used as exterior protected construction and load-carrying
construction.
4.Beautiful Design: Bright in color and attractive in appearance,
there is no need to make the outer ornament. The panel adopts
hidden-screw node design and has diversified panel effects.
5.Convenient Installation: Easy, flexible and fast. Compared with
civil construction, it can cut down over 40% construction period.
Technical Parameters:
| TESTING DATA OF BAODU ACOUSTICAL SANDWICH PANEL | | No. | REPORT ID | TESTING ORGANIZATION | PRODUCT NAME | MATERIAL STRUCTURE (BOTTOM-TO-TOP) | TOTAL THICKNESS (MM) | METAL THICKNESS (MM) | ROCKWOOL/ GLASSWOOL DENSITY (KG/m³) | CEMENT THICKNESS (MM) | DAMPING THICKNESS (MM) | SOUND ABSORBING DATA (NRC) | SOUND INSULATION (Db) | | TESTING STANDARD: GB/T 19889.3-2005/ISO140-3:1995 Acoustics -
Measurement of sound insulation in buildings and building elements
- Part 3: Laboratory measurement of airborne sound insulation of
building elements; | | 1 | KS-2021-09101 |
ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE
|
SOUND
INSULATION
| STEEL PLATE +CEMENT BOARD+ROCKWOOL +STEEL PLATE | 100 | 0.6/0.5 | 120 | 10 | / | / | 38 | | 2 | KS-2021-09102 | STEEL PLATE +DAMPING+ROCKWOOL +STEEL PLATE | 100 | 0.6/0.5 | 120 | / | 3 | / | 37 | | 3 | KS-2021-09103 | STEEL PLATE +CEMENT BOARD+DAMPING +ROCKWOOL +STEEL PLATE | 100 | 0.5/0.5 | 120 | 10 | 3 | / | 39 | | 4 | KS-2021-09104 | STEEL PLATE +DAMPING+CEMENT BOARD +ROCKWOOL +STEEL PLATE | 100 | 0.5/0.5 | 120 | 10 | 3 | / | 41 | | 5 | KS-2021-09105 | STEEL PLATE +DAMPING+ROCKWOOL +DAMPING +STEEL PLATE | 100 | 0.5/0.5 | 120 | / | 3 | / | 37 | | 6 | KS-2021-09106 | STEEL PLATE +CEMENT+ROCKWOOL +DAMPING +STEEL PLATE | 100 | 0.5/0.5 | 120 | 4 | 3 | // | 37 | | 7 | KS-2021-09107 | STEEL PLATE +DAMPING+CEMENT BOARD +ROCKWOOL+ DAMPING +STEEL PLATE | 100 | 0.5/0.5 | 120 | 4 | 2 | / | 38 | | 8 | KS-2021-09108 | STEEL PLATE +CEMENT BOARD +DAMPING+ROCKWOOL +DAMPIGN+STEEL PLATE | 100 | 0.5/0.5 | 120 | 4 | 2 | / | 38 | | 9 | KS-2021-09109 | STAINLESS STEEL PLATE +ROCKWOOL +STAINLESS STEEL PLATE | 100 | 0.5/0.5 | 120 | / | / | / | 34 | | 10 | KS-2021-09110 | STAINLESS STEEL PLATE +ROCKWOO L+STAINLESS STEEL PLATE | 50 | 0.5/0.5 | 120 | / | / | / | 33 | | 11 | KS-2021-09111 | STEEL PLATE +ROCKWOOL +STEEL PLATE | 100 | 0.6/0.6 | 120 | / | / | / | 35 | | TESTING STANDARD: GB/T20247-2006/iso 354:2003 Acoustics
reverberation room sound absorption measurement | | 12 | KS-2021-09112 | ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE | SOUND ABSORPTION | PERFORATED ALU PLATE +GLASS FIBRE+GLASSWOOL +STEEL PLATE | 80 | 0.6/0.6 | 64 | / | / | 0.95 | / | | | | | | | | | | | | | TESTING STANDARD:
1.: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound
absorption measurement;
2. GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound
insulation in buildings and building elements - Part 3: Laboratory
measurement of airborne sound insulation of building elements; | | 13 | A19-134 | CENTER FOR BUILDING ENVIORNMENT TEST, TSINGHUA UNIVERSITY | SOUND ABSORPTION &SOUND INSULATION | PERFORATED STEEL PLATE +GLASS FIBRE+GLASSWOOL +CEMENT BOARD +STEEL PLATE | 100 | 0.5/0.5 | 64 | 6 | / | 0.9 | Rw+C=38dB; Rw+Ctr=34dB |
|
|---|
Applications:
BAODU Acoustic Sandwich Panel
BAODU Acoustic Sandwich Panel is a sound insulation panel with
remarkable fireproof performance, density ranging from 60-200kg/m3,
and customized colors. It is widely used in warehouse, building and
other equipment thermal insulation. It is certified with CE and has
A-level fireproof performance.
1.Industrial Facilities
2.Commercial Building
3.Social Construct
4.Power Plants
Support and Services:
Acoustic Sandwich Panel provides technical support and services in
order to ensure its customers receive the best user experience.
Our technical support team is available to answer any questions you
may have regarding the product. We can provide assistance with
product installation, troubleshooting, and maintenance. We also
offer online resources such as FAQs, product manuals, and video
tutorials.
Additionally, our team of experienced engineers can provide on-site
services to help you with any issues you may have. We also provide
training for our customers so they can become more proficient in
using the product.
If you have any further questions, please do not hesitate to
contact us. We are committed to providing our customers with the
best possible experience when using our product.
Packing and Shipping:
Packaging and Shipping for Acoustic Sandwich Panel
Acoustic Sandwich Panels are made of high-density materials such as
glass wool, rock wool, and polyurethane foam. Our panels are
packaged and shipped in protective packaging, such as steel boxes,
to ensure that they arrive in pristine condition.
We use various shipping methods depending on the size and weight of
the panels. Smaller panels may be shipped via air freight, while
larger panels may be shipped via ground or sea freight.
We also offer custom packaging and shipping services for customers
with specific requirements. Please contact us for more information.
FAQ:
Questions & Answers about BAODU Acoustic Sandwich Panel
Q1: What is the Brand Name of the Acoustic Sandwich Panel?
A1: The Brand Name is BAODU.
Q2: What is the Model Number of the Acoustic Sandwich Panel?
A2: The Model Number is Acoustic Sandwich Panel.
Q3: Where is the Place of Origin of the Acoustic Sandwich Panel?
A3: The Place of Origin is Hebei,China.
Q4: What is the Minimum Order Quantity of the Acoustic Sandwich
Panel?
A4: The Minimum Order Quantity is Discussible.
Q5: What is the Payment Terms of the Acoustic Sandwich Panel?
A5: The Payment Terms is L/C, D/A, D/P, T/T, Western Union,
MoneyGram.
